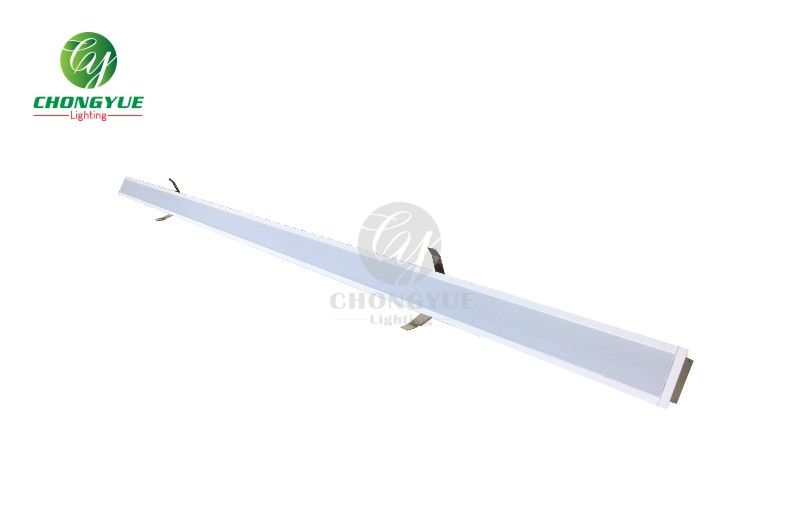

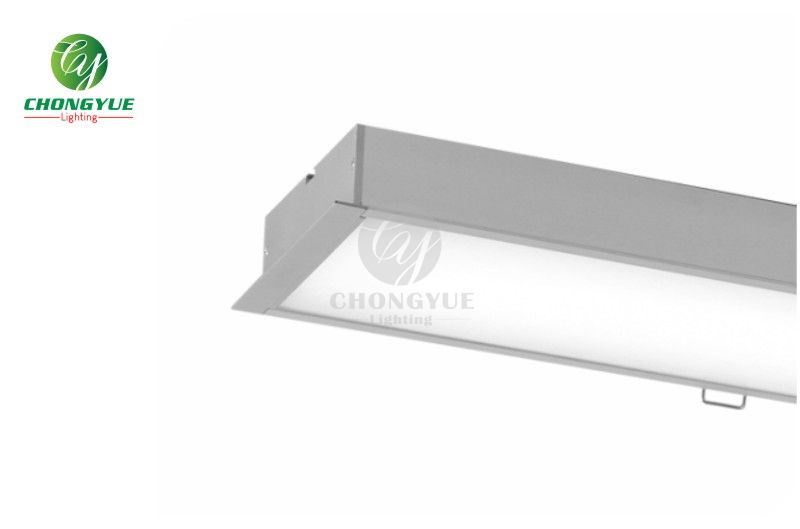

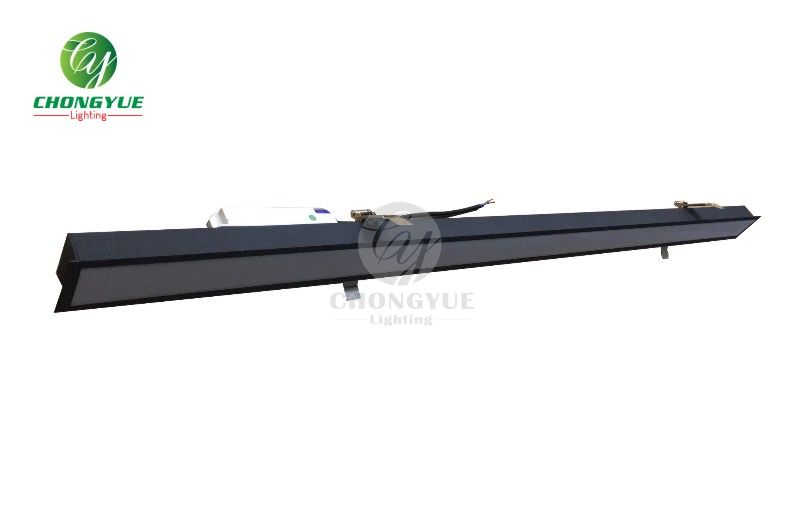

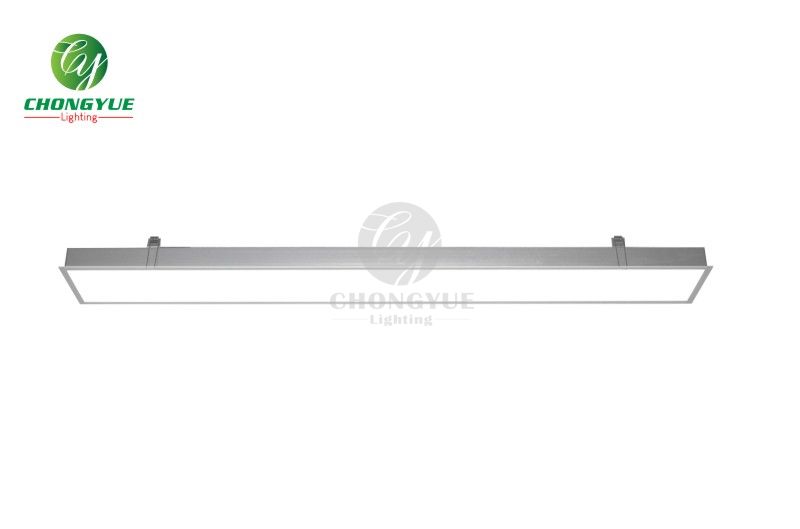

CE IP20 36W aluminum profile tube strip fixture recessed wall led linear light

SHARE:
Product Details

FEATURES:

A stylish led linear lamp is suitable for ceiling mounting.

High efficiency SMD LED light source up to 90lm/W.

High transmittance PC diffuser creating a hign visual comfort and very uniform lighting distributions

Extruded aluminum housing, anodized or powder coated fininsh, corrosion and scratch resistant, nice heat dissipation, multiply colors available on request.

External Selv power supply is relatively safe.

Lift-time of 50,000hrs, low lumen decay, low maintain cost.

Great option for Offices, Educational Institutes, Hopitals, Warehouses, Supermarkets, Stations, Packing lots Etc.


SPECIFICAITON

Model: L-014

Application:suspension, ceilling mounted, recessed, wall moundted

Material: aluminium + PC

Opetional driver: non dimmable, 0-10Vdimmable, DALI dimmable

LED Source: SMD2835 Bridgelux chip, high lumen

Optional color temperature: 3000K/4000K/5000K/6000K

Warranty: 3 years

Linkable type and dimmable type are available. Emergency battery kit could be customized.

DALI and 0-10V Dimmable and motion sensor and emergency battery backup type are available now with LiFud,Hytronic or Meanwell driver, the price for dimmable type could be offered separately according to your request.


PARAMETERS

LED SMD2835 110V-260V 50Hz-60Hz

Model Dimension
(L x W x H mm)
Material      Finish  Lens
material
Light souce  Power
(W)
CriCCT(K)DriverLife Time
L-014-36W 1200x50x35mmaluminumoxication/powder coatedPCSMD283536W≥803000/4000/5000/6000exterior50,000hrs
L-014-36W 1200x70x35mmaluminumoxication/powder coatedPCSMD283536W≥803000/4000/5000/6000exterior50,000hrs
L-014-36W 1200x120x35mmaluminumoxication/powder coatedPCSMD283536W≥803000/4000/5000/6000exterior50,000hrs


INSTALLATION

LED Circular Suspension Light


ACESSORY

LED Circular Suspension Light

Any inquiries with different ppecification, please contact our sales department for further information.
