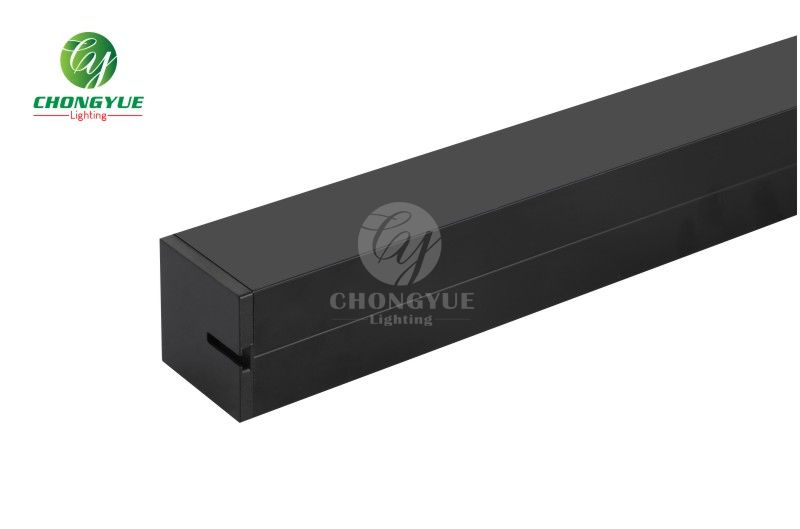

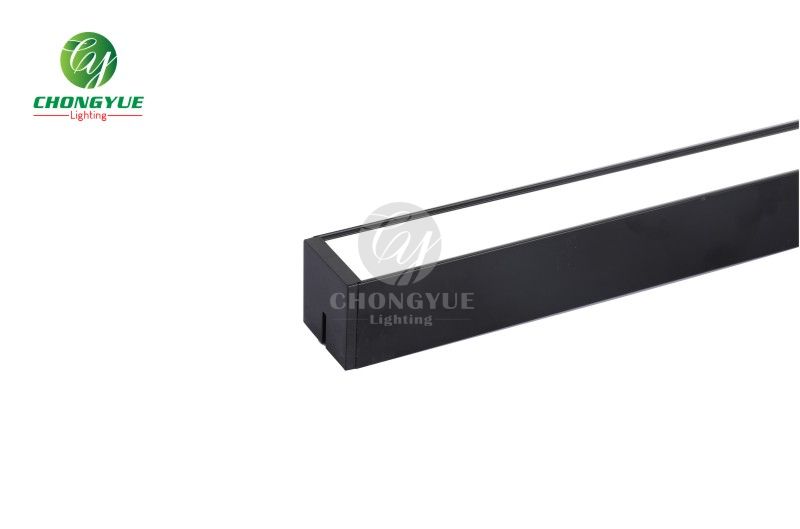

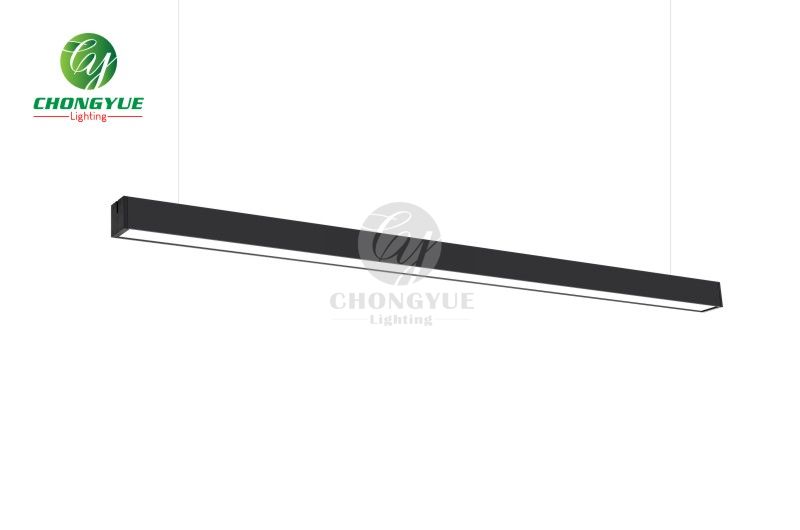

industrial led linear pendant light fixture

SHARE:
Product Details

FEATURES

A super slim linear light, smart in style, extrueded aluminium,anodized or powder coated fininsh, corrosion and scratch resistant,nice heat dissipation.

High transmittance PMMA diffuser creating a high visual comfort and very uniform lighting distributions.

Interior selv power supply is relatively safe.

Easy for installation. Customized lighting system with the latest addition of system connection module accessories (180 extender/L-shape/T-shape/X-shape).

Lift-time of 50,000hrs, low lumen decay, low maintain cost.

Great option for Offices, Educational Institutes, Hopitals, Warehouses, Supermarkets, Stations, Packing lots Etc.


SPECIFICAITON

Model: L-011

Application:suspension, ceilling mounted, recessed, wall moundted

Material: aluminium + PS

Opetional driver: non dimmable, 0-10Vdimmable, DALI dimmable

LED Source: SMD2835 Bridgelux chip, high lumen

Optional color temperature: 3000K/4000K/5000K/6000K

Warranty: 3 years

Linkable type and dimmable type are available. Emergency battery kit could be customized.

DALI and 0-10V Dimmable and motion sensor and emergency battery backup type are available now with LiFud,Hytronic or Meanwell driver, the price for dimmable type could be offered separately according to your request.


PARAMETERS

LED SMD2835 110V-260V 50Hz-60Hz

Model Dimension
(L x W x H mm)
Material      Finish  Lens
material
Light souce  Power
(W)
CriCCT(K)DriverLife Time
L-011-2400-72W 2400x50x50mmaluminumoxication/powder coatedPSSMD283572W≥803000/4000/5000/6000exterior50,000hrs
L-011-1500-48W 1500x50x50mmaluminumoxication/powder coatedPSSMD283548W≥803000/4000/5000/6000exterior50,000hrs
L-011-1200-36W 1200x50x50mmaluminumoxication/powder coatedPSSMD283536W≥803000/4000/5000/6000exterior50,000hrs
L-011-900-28W 900x50x50mmaluminumoxication/powder coatedPSSMD283528W≥803000/4000/5000/6000exterior50,000hrs


INSTALLATION

LED Circular Suspension Light


ACESSORY

LED Circular Suspension Light

Any inquiries with different ppecification, please contact our sales department for further information.

Mail us: susie@chongyuelighting.com

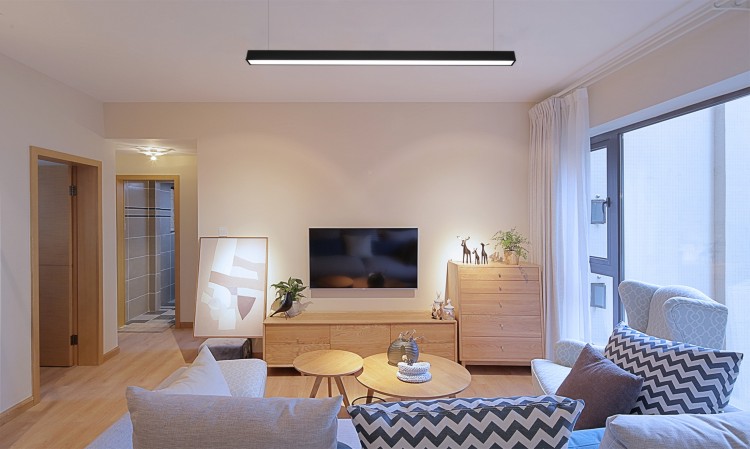

APPLICATION

industrial led linear pendant light fixture
