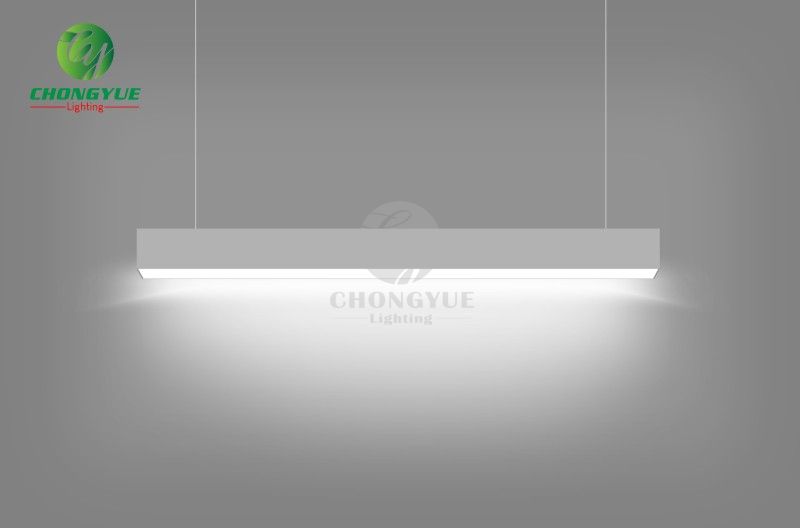

LED Suspension Linear Light

SHARE:
Product Details

FEATURES:

A super slim linear light, smart in style, extrueded aluminium,anodized or powder coated fininsh, corrosion and scratch resistant,nice heat dissipation.

High transmittance PC diffuser creating a hign visual comfort and very uniform lighting distributions.

External isolated power supply is relatively safe

Easy for installation. Customized lighting system with the latest addition of system connection module accessories (180 extender/L-shape/T-shape/X-shape).

Lift-time of 50,000hrs, low lumen decay, low maintain cost.

Great option for Offices, Educational Institutes, Hopitals, Warehouses, Supermarkets, Stations, Packing lots Etc.


SPECIFICAITON

Model: L-001

Application:suspension, ceilling mounted, recessed, wall moundted

Material: aluminium + PC

Opetional driver: non dimmable, 0-10Vdimmable, DALI dimmable

LED Source: SMD2835 Bridgelux chip, high lumen

Optional color temperature: 3000K/4000K/5000K/6000K

Warranty: 3 years

Linkable type and dimmable type are available. Emergency battery kit could be customized.

DALI and 0-10V Dimmable and motion sensor and emergency battery backup type are available now with LiFud,Hytronic or Meanwell driver, the price for dimmable type could be offered separately according to your request.


PARAMETERS

LED SMD2835 110V-260V 50Hz-60Hz

Model Dimension
(L x W x H mm)
Material      Finish  Lens
material
Light souce  Power
(W)
CriCCT(K)DriverLife Time
L-001-2400-72W 2400x48x70mmaluminumoxication/powder coatedPCSMD283572W≥803000/4000/5000/6000interior50,000hrs
L-001-1500-48W 1500x48x70mmaluminumoxication/powder coatedPCSMD283548W≥803000/4000/5000/6000interior50,000hrs
L-001-1200-36W 1200x48x70mmaluminumoxication/powder coatedPCSMD283536W≥803000/4000/5000/6000interior50,000hrs
L-001-900-28W 900x48x70mmaluminumoxication/powder coatedPCSMD283528W≥803000/4000/5000/6000interior50,000hrs


INSTALLATION

LED Circular Suspension Light


ACESSORY

LED Circular Suspension Light

Any inquiries with different ppecification, please contact our sales department for further information.

Mail us: susie@chongyuelighting.com

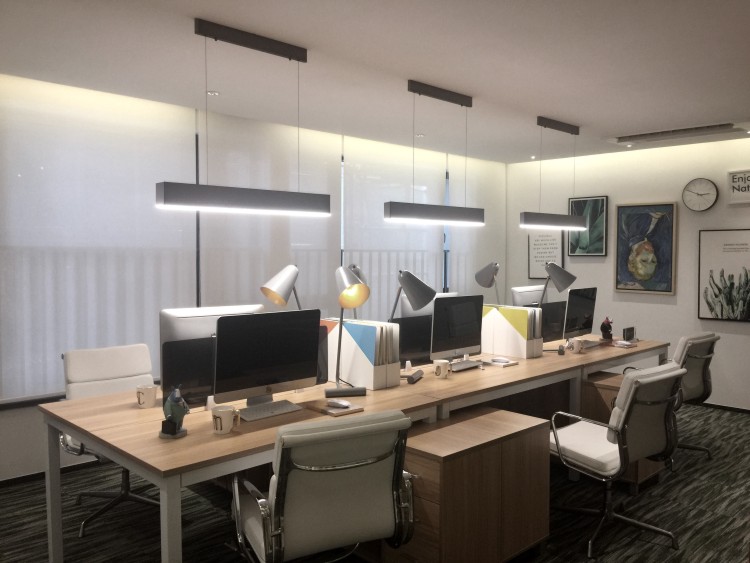

APPLICATION

LED Suspension Linear Light
